Key terms to know when getting started:
- Looks
- Dashboards
- Tiles
- Explores
- Dimensions
- Measures
Looks
Looks are the same thing as a report, it's the first step towards building a dashboard
- Can be sent, scheduled or downloaded as
Excel, PNG, HTML, JSON, TXT, CSV - Can be designed as (amongst others)
- Table Chart
- Bar Chart
- Line Chart
- Donut & Pie Chart
- Single Value
- Scatter plot
- Area Chart
- Map (Geographic & Heat Map)
- Can't be controlled by viewing permission settings
- Looks are created from Explores

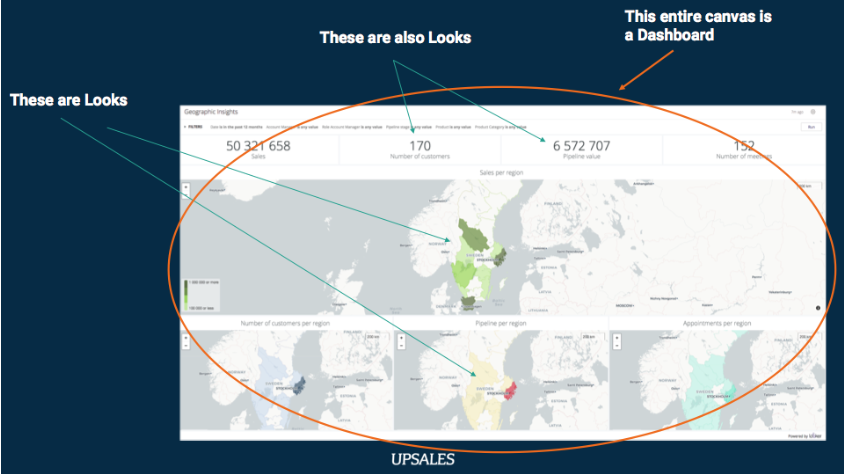

Dashboards
A dashboard can contain one or more looks as it is a collection of multiple data sources. Users are not limited to creating looks from one particular Explore. Instead, Dashboards allow for looks to be combined into a shared space regardless of the Explore it derived from. This makes dashboards highly versatile and flexible in terms of cross-referencing data from more than one business area.
- Is a collection of looks in one canvas
- Can contain one or more looks
- Can be downloaded, scheduled, or sent as a PDF or CSV
- Can be made private or global
- Is subject to permission settings per role
- Dashboards are created from Looks
Tiles
A Tile is an alternative way to create a Look. The difference between creating a Tile and a Look is that a Look may be a separate entity and saved in the "Reports" tab whereas Tiles are always connected to a Dashboard. Looks are created form Explores in the "Explores" tab while Tiles are created from within a Dashboard. There are no other functional differences between Looks and Tiles in terms of downloading, sending, scheduling, filtering etc. When creating a Tile, the report will automatically (and only) be connected to the Dashboard from which the Tile started. Once the "New Tile" button is selected, the user is shown a menu from which one will select an Explore. From this stage, the process of building a Look/Report/Tile is the same as when starting from the Explores tab - this way, you simply don't have to save it to a Dashboard.

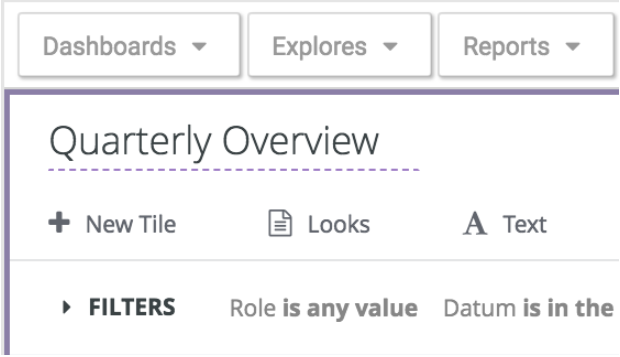

To access Tiles, hit the Edit button in the top right corner of your Dashboard upon which you will be presented with these options.
- Tiles are Looks that are always adjoined to one dashboard
- Tiles can be duplicated
- Tiles can be sent, scheduled, downloaded, and filtered
- Tiles cannot be moved to another dashboard

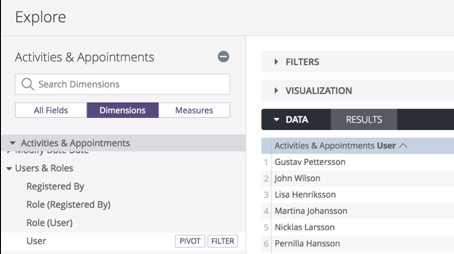

Explores
- Qualitative fields
- Dimensions break down measures
- They are often text or date fields
Typical examples of Dimensions are:
- Users
- Dates
- Addresses
- Products
- Roles/Teams
- Order Stage
Measures
- Quantitative fields
- Aggregates, sums, averages, numerical values
- They are always numbers or percentages
Typical examples of Measures are:
- Number of orders
- Order value
- Average pipeline value
- Conversion rate (%)
- Currency rate
Good to know
- All fields derive from your Upsales account
- The input values in Upsales are directly reflected in Insights
- Custom fields are also available through an import by a B.I. Consultant
- Insights have an instantaneous connection with the Upsales Database for zero lag time
